BYD, a leading Chinese electric vehicle manufacturer, is venturing into the electric motorcycle market with its innovative VF-PMSM motor technology. This motor delivers strong torque at low speeds and maintains high efficiency when accelerating, making it a breakthrough in electric two-wheeler powertrains.
VF-PMSM stands for Variable Flux Permanent Magnet Synchronous Motor, a patented technology BYD developed to optimize energy use without increasing battery size. Unlike conventional permanent magnet motors with fixed magnetic flux, this system adjusts the magnetic flux dynamically based on the vehicle’s operating conditions.
BYD’s Experience in Electric Motorcycle Batteries
BYD’s expertise in battery technology for electric motorcycles is well established. The company has been a major supplier of batteries to brands like Nexa in Spain and produced models like the X1 for Scorpio in Singapore. Their credibility is backed by years of proven performance in electric vehicles, including popular electric cars like the BYD Seal and BYD Dolphin available in markets such as Indonesia.
This heritage gives BYD a solid foundation to innovate on the electric motorcycle front using the VF-PMSM technology. Reports suggest the first BYD electric motorcycle will feature this variable flux motor, aiming to extend range by improving torque delivery and efficiency.
Technical Highlights of VF-PMSM
The VF-PMSM motor overcomes the limitations of traditional permanent magnet synchronous motors. At low speeds, it increases magnetic flux to generate strong, responsive torque essential for city riding or stop-and-go traffic. When the rider accelerates aggressively or rides at high speeds, the motor reduces magnetic flux to minimize energy losses caused by counter-electromotive force (back-EMF).
This dual optimization mechanism enables the motor to operate efficiently across a broader speed range, conserving battery power and extending the vehicle’s driving range. BYD’s approach focuses on motor efficiency improvements rather than expanding battery capacity, which helps keep vehicle weight and cost under control.
Four Patents Define VF-PMSM Innovation
In 2024, BYD filed four patents related to VF-PMSM, later published by China’s National Intellectual Property Administration in 2025. These patents detail several technical innovations:
- Integrated magnetic flux adjustment systems.
- Mechanisms that allow magnets to move relative to the rotor.
- Precise axial and radial flux control configurations.
- Adaptive control elements embedded within the motor rotor and magnetic circuits.
Together, these design features enable dynamic magnetic flux regulation. The result is a consistent torque output from low to high speeds and optimized energy efficiency, ultimately boosting the electric motorcycle’s effective range.
Expected Design and Performance of BYD’s Electric Motorcycle

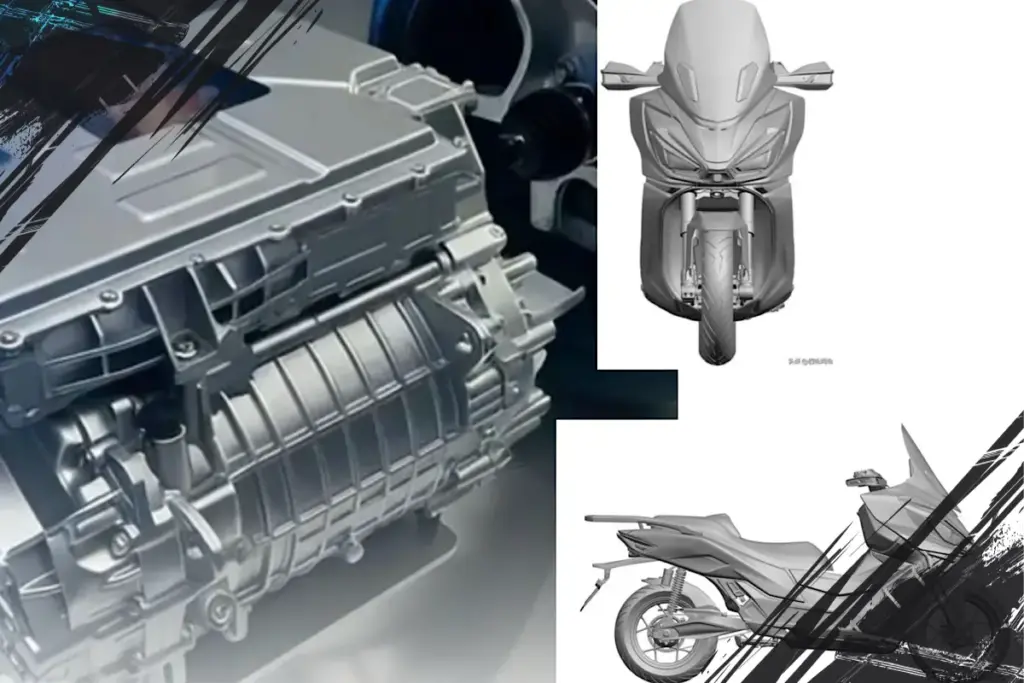

Images of BYD’s patented electric motorcycle design suggest a mid-engine layout with a timing belt drive. The bike appears to fit in the 250cc to 350cc equivalent class, delivering power between 20 and 35 horsepower. It likely incorporates a lithium iron phosphate (LFP) battery with a capacity between 9 kWh and 12 kWh, offering an estimated range exceeding 100 kilometers (62 miles) per charge.
Additional features inferred from patent sketches include:
- 15-inch front wheels with upside-down suspension for improved stability.
- Slightly smaller 14-inch rear wheels with a swingarm design for agility.
- Comfortable riding posture supported by a stepped seat.
- Practical accessories such as a rear carrier rack, tall windshield, and hand guards for wind protection.
BYD’s electric motorcycle aims to deliver a comfortable and efficient riding experience, targeting urban commuters and environmentally conscious riders.
BYD continues to push the boundaries in electric vehicle technology by enhancing the core motor rather than relying solely on bigger batteries. VF-PMSM’s variable-flux principle is a promising step toward longer-range, more responsive electric motorcycles without drastic cost increases or heavier designs. Enthusiasts and industry watchers eagerly anticipate BYD’s official launch of its electric motorcycle equipped with this advanced motor technology.
