EnGenius ECW520 is positioned for users who want Wi-Fi 7 coverage to grow in a more orderly way, rather than through an all-in-one router setup. The device targets large homes, small offices, and business environments that need a compact access point with cloud-based control and a network structure that is easier to manage.
That positioning matters because the ECW520 is not designed to replace a router. It acts as an access point, which means its task is to extend an existing network and improve capacity, while routing, DNS, and DHCP still remain the responsibility of a separate router in most setups.

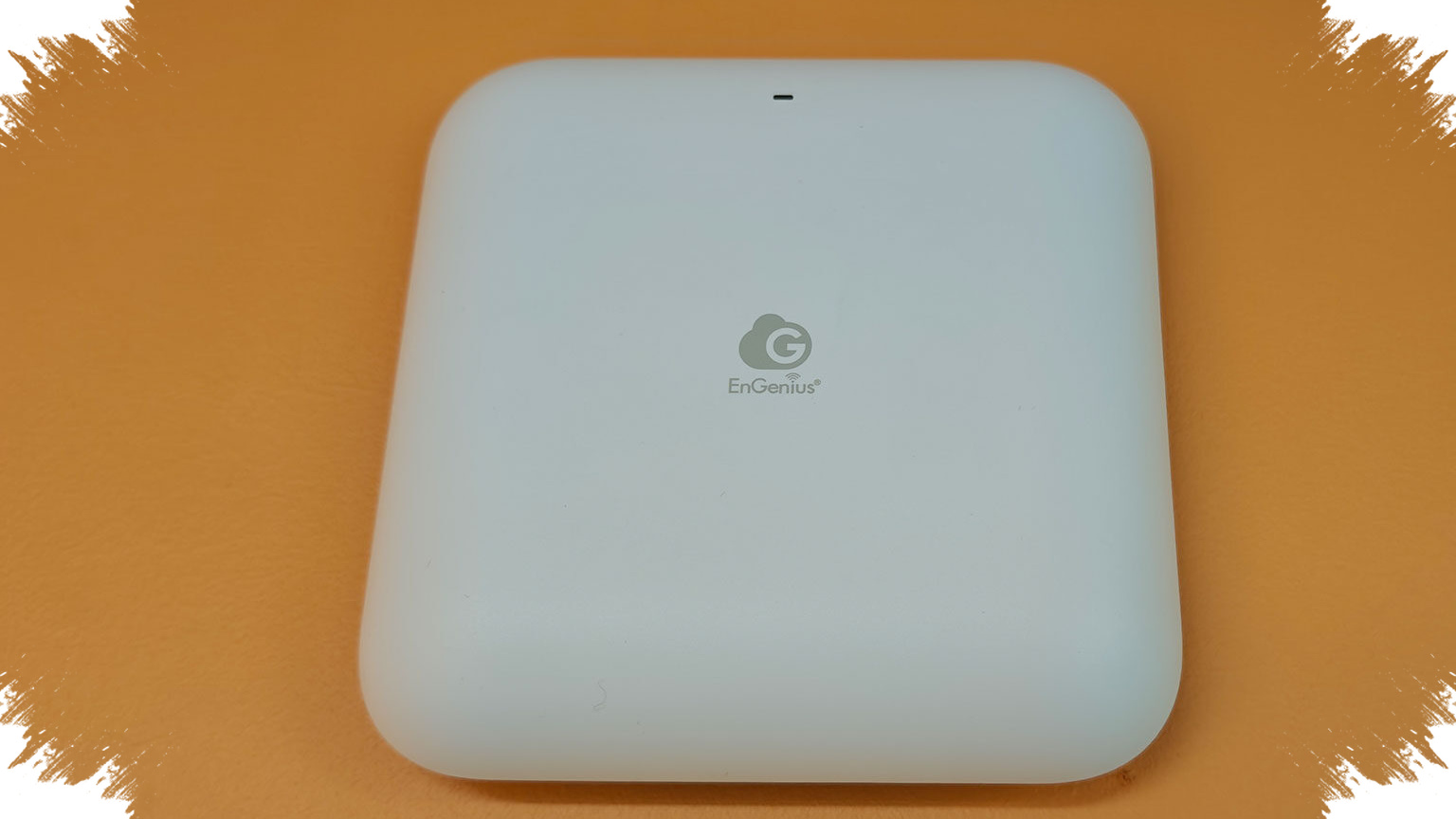

A compact unit built for ceiling or wall placement
Physically, the ECW520 is small enough to stay visually discreet in a professional setting. It measures 158 x 158 x 35.8 mm and weighs 600 grams, making it suitable for ceiling or wall installation without drawing much attention.
EnGenius also keeps the installation process relatively simple. Power comes through PoE, so a single Ethernet cable can handle both data and power, helping reduce cable clutter around the unit.
What sits on the back
The rear panel includes one 2.5-GbE PoE-plus 802.3at port, one DC 12-volt/2-amp power jack, and a concealed reset button. A wall and ceiling mounting bracket is included in the box, although the power adapter is not.
Wi-Fi 7 capacity with tri-band support
Inside, the ECW520 uses Wi-Fi 7 802.11be with a tri-band 2x2x2 design across 2.4GHz, 5GHz, and 6GHz. The claimed maximum speeds are 700 Mbps on 2.4GHz, 4,300 Mbps on 5GHz, and 5,800 Mbps on 6GHz.
The 6GHz band is one of the device’s main highlights because it supports channel widths up to 320MHz. That gives the access point more room to handle demanding traffic, especially in environments with multiple active devices.
The unit also supports up to eight SSIDs per band and can manage as many as 512 simultaneous connections. Those figures make it well suited to households or workspaces that need separate networks for guests, work devices, and IoT equipment.
Cloud control is central to the experience
The ECW520 leans heavily on cloud management. Initial setup begins by scanning a QR code that opens the quick guide and the EnGenius Cloud-To-Go app on iOS or Android.
A free EnGenius account is required before the unit can be used. Once active, the app dashboard shows network status, connected clients, band usage, and device health in one place, giving administrators a clearer picture of network activity.
EnGenius Cloud uses a tiered subscription model. The free tier covers basic setup and light monitoring, while Basic, Plus, and Pro plans unlock deeper analytics, historical data, and more advanced controls.
Flexible modes and security options
The ECW520 supports AP, AP Mesh, and Mesh modes, which helps when a network needs to expand gradually. When multiple units are used, mesh configuration can run automatically as long as all devices are under the same account.
Security options are also broad for this class of hardware. The device supports WPA2-PSK, WPA2-Enterprise, WPA3-PSK, WPA3-Enterprise, SSID hiding, client isolation, and client access control.
That combination gives users room to shape the network more carefully, whether the deployment is in a large home or a small business that needs controlled access for different groups of users and devices.
Performance points to multi-access-point use
In testing within an office environment, the ECW520 delivered consistent results at short range across all three bands. The 5GHz and 6GHz bands were the strongest performers, while 2.4GHz remained useful for IoT devices and lower-bandwidth tasks.
At medium range, signal strength across the three bands was still described as reasonably even. At longer distances with thick walls, however, a single unit began to struggle, which suggests that the ECW520 is better suited to a multi-access-point layout when coverage needs to reach farther.
Priced at US$249, the ECW520 is not aimed at users who only want a simple home router. It fits better in setups that need Wi-Fi 7 coverage to be expanded, centrally managed, and organized more cleanly across larger homes, retail spaces, or office environments.
