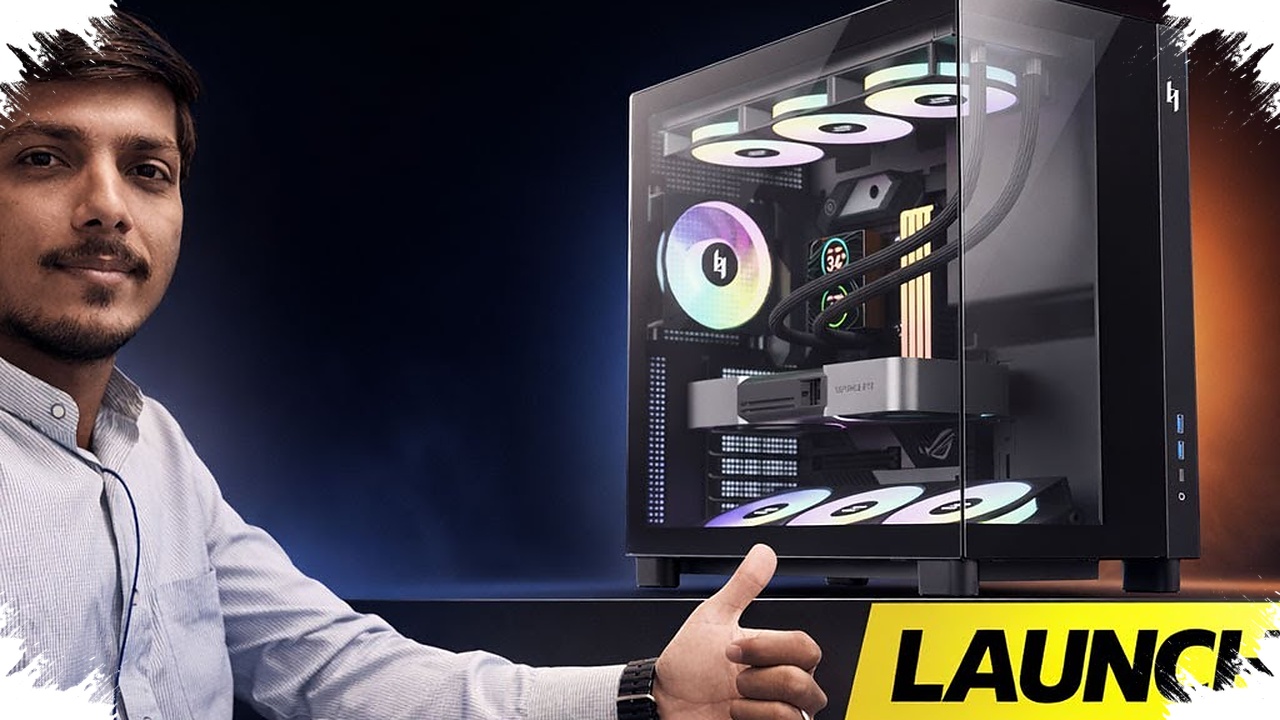

GameMax NEX C53 Panoramic targets users who want a cleaner-looking PC build without giving up practical hardware support. The mid-tower case stands out through its dual tempered glass panels on the front and side, creating a panoramic presentation that makes the internal layout visible from multiple angles.
The showcase-style approach is reinforced by a 270-degree viewing effect, which gives components such as the graphics card, liquid cooling system, and ARGB lighting more room to stand out. GameMax also uses 4 mm tempered glass to keep the design visually open while still providing a layer of protection for the hardware inside.
A compact mid-tower with a showcase focus
Measured at 435 x 235 x 435 mm, the NEX C53 Panoramic fits the mid-tower category and stays compact enough for desks that do not have much space to spare. At the same time, the chassis still leaves enough internal room for a build that needs more breathing space than a smaller case can offer.
One of the most noticeable design choices is the open left-front corner, which removes the visual interruption usually created by a support pillar. This helps the inside of the case appear wider and less segmented, matching the growing demand for PC cases that are built to be displayed rather than hidden.
PSU placement opens up the lower chamber
GameMax places the power supply unit vertically at the front of the case instead of the more common rear position. That layout changes how the internal space is used, because the lower section becomes easier to organize and less crowded by a major component.
The extra room at the bottom is then used to support cool air intake, with three fans positioned to channel fresh air directly toward the graphics card. This makes the case more than a visual product, since the airflow design is meant to help balance the appearance-focused exterior with practical cooling behavior.
Four included ARGB fans and adjustable airflow
The NEX C53 Panoramic ships with four ARGB PWM fans already installed. Three fans at the bottom use a reverse-blade design, while one rear fan handles hot air exhaust from inside the chassis.
GameMax also adds a multi-angle fan bracket in the lower section, giving users more flexibility in how the airflow is directed. The bracket can be set diagonally or straight, depending on which areas of the system need more focused cooling.
Built for BTF and larger hardware
Support for Back-to-Future, or BTF, motherboards is one of the case’s key selling points. This standard moves power and data connectors to the back of the motherboard, which helps keep the visible side of the build cleaner and reduces cable clutter.
To support that setup, the motherboard tray includes a dedicated cutout for BTF routing. GameMax also provides 30 mm of cable-management space behind the right-side panel, making it easier to route thicker cables neatly out of view.
Compatibility remains broad for larger parts. The case supports graphics cards up to 425 mm in length, CPU air coolers up to 180 mm high, and liquid-cooling radiators up to 360 mm on the top panel.
Front I/O is kept modern and storage stays minimal
The front I/O panel includes a USB Type-C Gen 2×2 port rated at up to 20 Gbps, along with two USB 3.0 Type-A ports and a combo audio jack. A mechanical adjustable GPU support bracket is also included, adding a practical feature for heavier graphics cards.
Storage options are intentionally limited. The case supports either one 3.5-inch HDD and one 2.5-inch SSD, or two 2.5-inch SSDs, which shows that the design leans toward modern builds rather than large numbers of traditional drives.
GameMax positions the NEX C53 Panoramic in the mid-range segment with a combination of glass-heavy styling, BTF support, and included cooling hardware. The case is priced at around Rp1 million for the black version and Rp1.2 million for the white version, making it a showcase-oriented option for users who want a clean build with visible components and modern connectivity.
